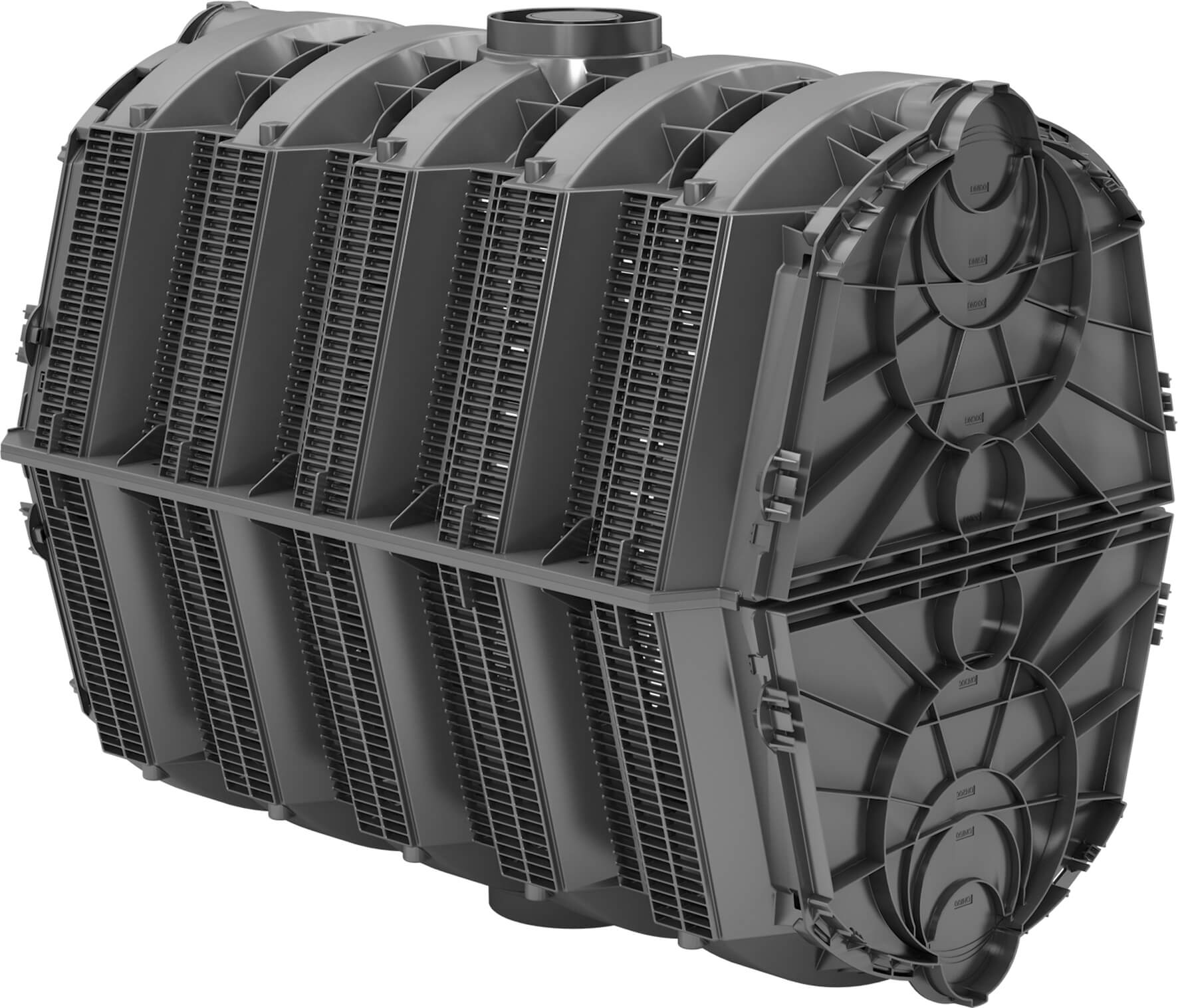

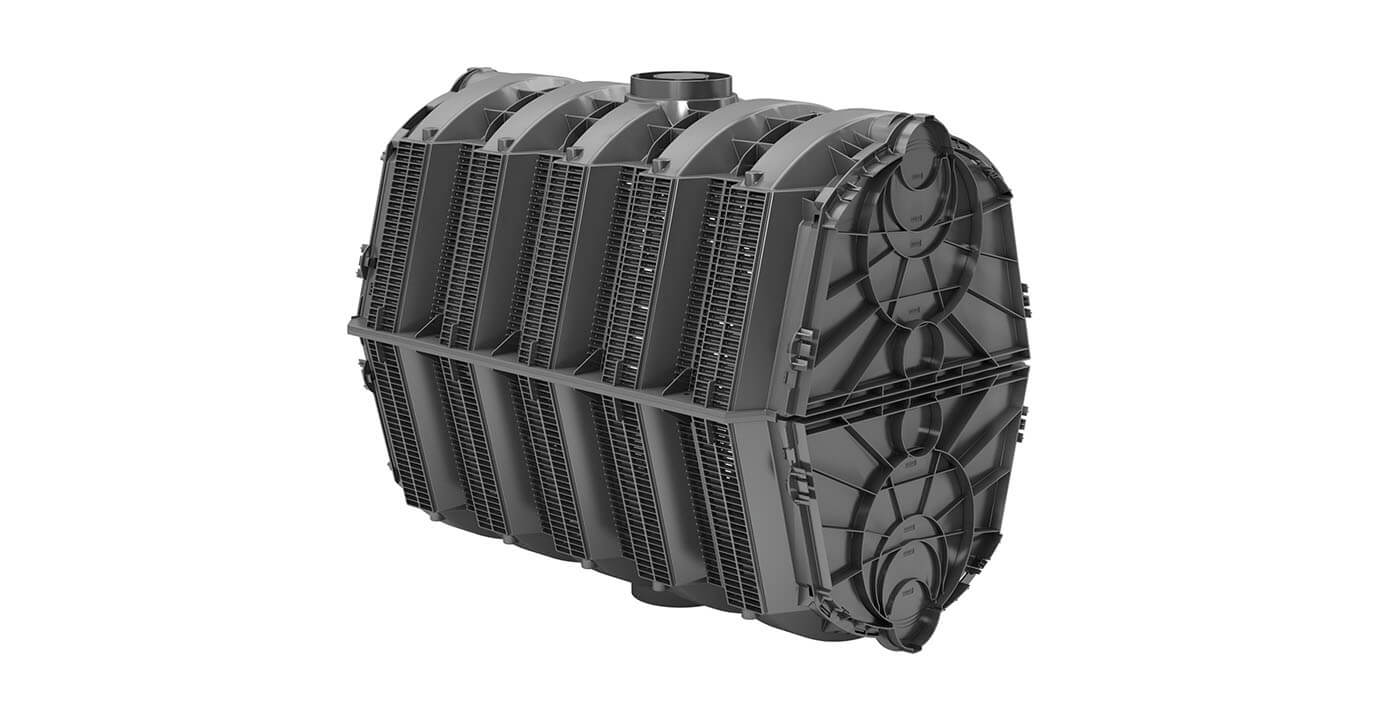

Infiltration tunnel twin 600 L

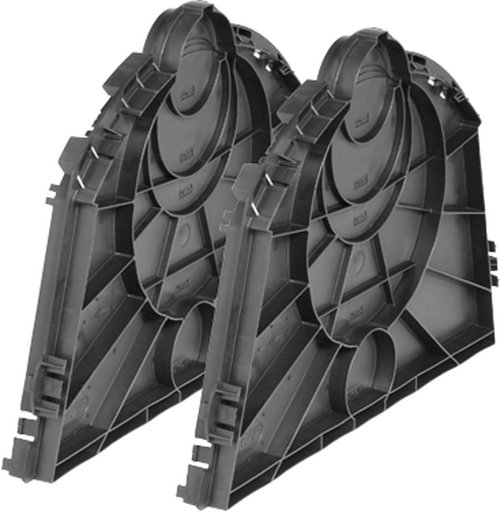

End plate for infiltration tunnel 300, suitable for vehicle loading

Set 2 units

Inspection end DN 200

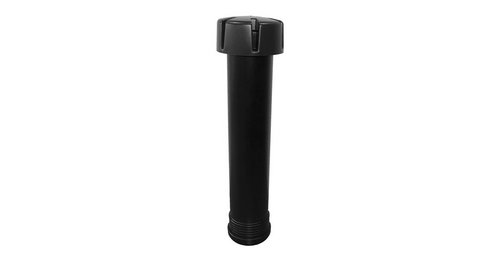

Deaeration end DN 100

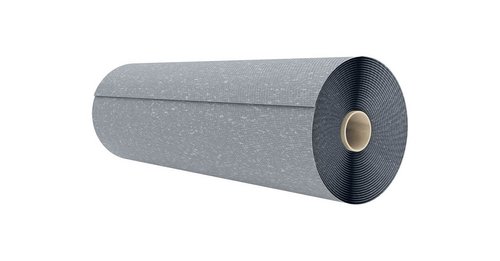

Graf-Tex geotextile size 2.50 x 2.50 m

for an EcoBloc Inspect flex, Rain Bloc and an infiltration tunnel

Graf-Tex geotextile; sold by the metre, roll width 5m

Material sold by the metre, roll width 5 m

Sedimentation filter shaft, suitable for pedestrian loading

To clean rainwater before infiltration.

• 3-stage cleaning process
  - Fine filter basket (0.35 mm mesh width)
  - Sedimentation zone
  - Submerged pipe as oil separator
• Low installation depth from 1,000 – 1,500 mm using telescopic dome shaft
• Suitable for pedestrian loading with plastic cover
• Cover has child-proof lock
• Sealed up to the earth surface
• Maximum 1000 m² to the sealed surface to be connected
• DN 150 connections
• Sedimentation shaft to retain dirt before the infiltration system
• Ideal for large plants
• With extraction device for easy extraction of the sieve insert

Infiltration filter shaft, suitable for vehicle loading

Ideal as yard inlet or as swale infiltration inlet element. Retains impurities that could have a negative effect on infiltration performance.

• 3-stage cleaning process
  - Coarse filter insert
  - Fine filter basket (0.35 mm mesh width)
  - Sedimentation zone
• Retains impurities that could have a negative affect on infiltration performance.
• Ideal as yard inlet or as swale infiltration inlet element
• Suitable for vehicle loading with cast cover class B
• Low installation depth from 570 – 1,050 mm using telescopic dome shaft
• Maximum 350 m² sealed surface with connection to DN 110 and 500 m² with DN 160
• DN 110 / DN 160 connections
• With extraction device for easy extraction of the sieve inserts
• Ensures long-term function of the infiltration plant

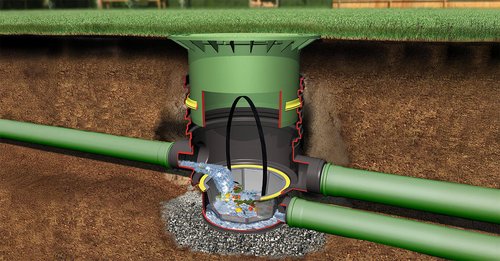

Universal-Filter 3 external, suitable for pedestrian loading

100 % water yield

• External filter to clean the rainwater before the tank
• Available for pedestrian loading and for vehicle loading
• 100 % water yield: therefore, ideal for smaller roof areas
• Filter insert mesh width 0.35 mm (0.01")
• Continuously variable installation depth of 600 - 1,050 mm (22.4 - 41.3") using the telescopic dome shaft
• Lockable, childproof cover
• Flush with ground level
• Minimal height offset (270 mm / 10.6") between the inlet and outlet
• Also suitable for infiltration and pond systems
• Maximum roof surface area of 350 m² with connections DN 110 and 500 m² with DN 160

Universal Industrial Filter 3 external, suitable for pedestrian loading

For roof surfaces up to 1,200 m²

• For roof surfaces up to 1,200 m²
• Continuously variable installation depth of 703 - 1,270 mm (26.7-50.0") using the telescopic dome shaft
• Maximum roof surface area of 750 m² with connections DN 150 and 1,200 m² with DN 200
• Only 229 mm height offset between the inlet and the outlet
